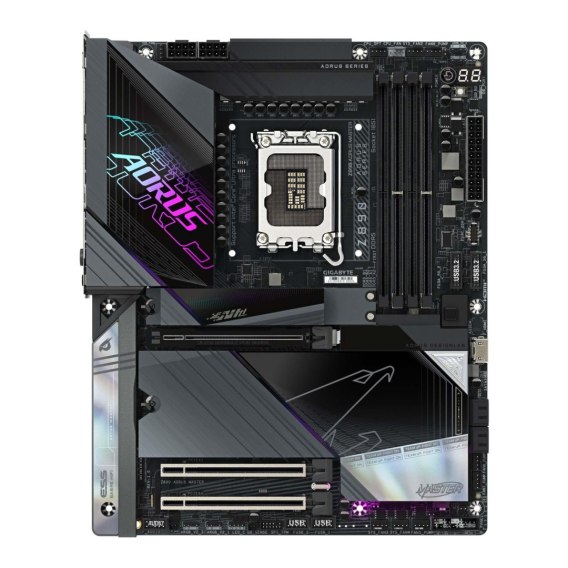

Płyta Gigabyte Z890 AORUS MASTER /Z890/DDR5/SATA3/M.2/TB4/WiFi/BT/PCIe5.0/s.1851/ATX
Symbol:
Z890 AORUS MASTER
| Wysyłka w ciągu | 24 godziny |
| Cena przesyłki | 10.99 |
| Dostępność |
|
| Waga | 0.15 kg |
Gniazdo procesora: Socket 1851
Obsługiwane typy procesorów: Intel Core Ultra Processors (series 2)
Uwagi do procesora: L3 cache varies with CPU
Format płyty: ATX
BIOS: 256 Mbit flash
Chipset płyty głównej: Intel® Z890
Ilość złącz pamięci DDR5: 4
Maksymalna wielkość pamięci: 256 GB
Tryb pracy pamięci RAM: Dual Channel
Standard pamięci: DDR5-9500 (OC), DDR5-9466 (OC), DDR5-9333 (OC), DDR5-9200 (OC), DDR5-9066 (OC), DDR5-8933 (OC), DDR5-8800 (OC), DDR5-8600 (OC), DDR5-8400 (OC), DDR5-8266 (OC), DDR5-8200 (OC), DDR5-8000 (OC), DDR5-7950 (OC), DDR5-7900 (OC), DDR5-7800 (OC), DDR5-7600 (OC), DDR5-7400 (OC), DDR5-7200 (OC), DDR5-7000 (OC), DDR5-6800 (OC), DDR5-6600 (OC), DDR5-5800, DDR5-5600
Uwagi do pamięci RAM: Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules, (operate in non-ECC mode), Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules, Support for Extreme Memory Profile (XMP) memory modules, Support CUDIMM memory module
Zintegrowany kontroler SATA: Chipset+CPU: 6x SATA III 6Gb/s - RAID 0,1,10,5 + 5x M.2 - RAID 0,1,10,5
Uwagi do kontrolera SATA: CPU:, - 1x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280, PCIe 5.0 x4/x2 SSD support) (M2A_CPU), - 1x M.2 connector (Socket 3, M key, type 22110/2280, PCIe 4.0 x4/x2 SSD support) (M2B_CPU), - 1x M.2 connector (Socket 3, M key, type 22110/2280, PCIe 5.0 x4/x2 SSD support) (M2D_CPU), Chipset:, - 1x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support, PCIe 4.0 x4/x2 SSD support) (M2P_SB), - 1x M.2 connector (Socket 3, M key, type 2280 SATA and, PCIe 4.0 x4/x2 SSD support) (M2M_SB), - 4x SATA 6Gb/s connectors
Gniazda karty graficznej: HDMI, 2x Thunderbolt™ 4 (USB Type-C®)
Uwagi do karty graficznej: - HDMI 1.4 supporting a maximum resolution of 1920x1080@30 Hz, - Support for HDMI 1.4 version, - When a Thunderbolt monitor is installed, the maximum resolution, supported is 5120x2880@60 Hz with 24 bpp (single display output), - When a USB4 USB Type-C monitor is installed, the maximum resolution, supported is 3840x2160@240 Hz (single display output)
Zintegrowana karta dźwiękowa: Realtek® ALC1220 CODEC
Gniazda karty dźwiękowej: Wyjście optyczne S/PDIF, 2x Audio Jack, Wewnętrzne gniazdo audio przedniego panelu
Uwagi do karty dźwiękowej: ESS ES9118 DAC chip, Support for DTS:X® Ultra, High Definition Audio, 2/4/5.1-channel
Złącza PCI Express x16: 3
Uwagi do złącz PCI: CPU:, - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 PCIEX1, - The PCIEX16 slot can only support a graphics card or an NVMe SSD, - If only one graphics card is to be installed, be sure to install it in, the PCIEX16 slot, - The PCIEX16 slot shares bandwidth with the M2D_CPU connector, - The PCIEX16 slot operates at up to x8 mode when a device is installed in, the M2D_CPU connector, Chipset:, - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4), - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)
Port LAN: 1x 10 Gigabit LAN Marvell® AQtion AQC113C
Maksymalna ilość portów USB 2.0: 6
Maksymalna ilość portów USB 3.x: 15
Maksymalna ilość portów USB 4.0: 2
Porty USB na panelu tylnym: 2x USB 2.0 + 4x USB 3.0 + 6x USB 3.1 + 2x Thunderbolt 4 (USB4 Type-C)
Gniazda USB na płycie głównej: 2x USB 2.0 (4 porty) + 2x USB 3.0 (4 porty) + 1x USB 3.2 Type-C (1 port)
Port Wi-Fi: IEEE 802.11a/b/g/n/ac/ax/be
Port Bluetooth: Bluetooth V5.4
Uwagi do WiFi / BT: Intel Wi-Fi 7 BE200NGW, - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency b, - BLUETOOTH 5.4, - Support for 11be 320MHz wireless standard, - Actual data rate may vary depending on environment and equipment, - Wi-Fi 7 features require Windows 11 SV3 to function properly, - Wi-Fi 7 channels on 6 GHz band availability depends on country's regulati
Port PS/2: Brak
Port szeregowy (COM): Brak
Port równoległy (LPT): Brak
Inne porty i gniazda: 2x SMA antenna connectors (2T2R), Q-Flash Plus button, Clear CMOS button(s), CPU fan/water cooling pump header, 4x system fan headers, 4x system fan/water cooling pump headers, 4x addressable RGB Gen2 LED strip headers, RGB LED strip header, Gniazdo modułu TPM, Noise detection header, Reset jumper, Clear CMOS jumper, 2x temperature sensor headers
Gniazdo zasilania: ATX (24-pin) + 2x ATX12V (8-pin)
Wymiary [S x W] (mm): 305 x 244
Opakowanie: BOX
Zawiera baterię / akumulator: Tak
Informacje dodatkowe: Support for Windows 11 64-bit, BIOS: PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Obsługiwane typy procesorów: Intel Core Ultra Processors (series 2)
Uwagi do procesora: L3 cache varies with CPU
Format płyty: ATX
BIOS: 256 Mbit flash
Chipset płyty głównej: Intel® Z890
Ilość złącz pamięci DDR5: 4
Maksymalna wielkość pamięci: 256 GB
Tryb pracy pamięci RAM: Dual Channel
Standard pamięci: DDR5-9500 (OC), DDR5-9466 (OC), DDR5-9333 (OC), DDR5-9200 (OC), DDR5-9066 (OC), DDR5-8933 (OC), DDR5-8800 (OC), DDR5-8600 (OC), DDR5-8400 (OC), DDR5-8266 (OC), DDR5-8200 (OC), DDR5-8000 (OC), DDR5-7950 (OC), DDR5-7900 (OC), DDR5-7800 (OC), DDR5-7600 (OC), DDR5-7400 (OC), DDR5-7200 (OC), DDR5-7000 (OC), DDR5-6800 (OC), DDR5-6600 (OC), DDR5-5800, DDR5-5600
Uwagi do pamięci RAM: Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules, (operate in non-ECC mode), Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules, Support for Extreme Memory Profile (XMP) memory modules, Support CUDIMM memory module
Zintegrowany kontroler SATA: Chipset+CPU: 6x SATA III 6Gb/s - RAID 0,1,10,5 + 5x M.2 - RAID 0,1,10,5
Uwagi do kontrolera SATA: CPU:, - 1x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280, PCIe 5.0 x4/x2 SSD support) (M2A_CPU), - 1x M.2 connector (Socket 3, M key, type 22110/2280, PCIe 4.0 x4/x2 SSD support) (M2B_CPU), - 1x M.2 connector (Socket 3, M key, type 22110/2280, PCIe 5.0 x4/x2 SSD support) (M2D_CPU), Chipset:, - 1x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support, PCIe 4.0 x4/x2 SSD support) (M2P_SB), - 1x M.2 connector (Socket 3, M key, type 2280 SATA and, PCIe 4.0 x4/x2 SSD support) (M2M_SB), - 4x SATA 6Gb/s connectors
Gniazda karty graficznej: HDMI, 2x Thunderbolt™ 4 (USB Type-C®)
Uwagi do karty graficznej: - HDMI 1.4 supporting a maximum resolution of 1920x1080@30 Hz, - Support for HDMI 1.4 version, - When a Thunderbolt monitor is installed, the maximum resolution, supported is 5120x2880@60 Hz with 24 bpp (single display output), - When a USB4 USB Type-C monitor is installed, the maximum resolution, supported is 3840x2160@240 Hz (single display output)
Zintegrowana karta dźwiękowa: Realtek® ALC1220 CODEC
Gniazda karty dźwiękowej: Wyjście optyczne S/PDIF, 2x Audio Jack, Wewnętrzne gniazdo audio przedniego panelu
Uwagi do karty dźwiękowej: ESS ES9118 DAC chip, Support for DTS:X® Ultra, High Definition Audio, 2/4/5.1-channel
Złącza PCI Express x16: 3
Uwagi do złącz PCI: CPU:, - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 PCIEX1, - The PCIEX16 slot can only support a graphics card or an NVMe SSD, - If only one graphics card is to be installed, be sure to install it in, the PCIEX16 slot, - The PCIEX16 slot shares bandwidth with the M2D_CPU connector, - The PCIEX16 slot operates at up to x8 mode when a device is installed in, the M2D_CPU connector, Chipset:, - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4), - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)
Port LAN: 1x 10 Gigabit LAN Marvell® AQtion AQC113C
Maksymalna ilość portów USB 2.0: 6
Maksymalna ilość portów USB 3.x: 15
Maksymalna ilość portów USB 4.0: 2
Porty USB na panelu tylnym: 2x USB 2.0 + 4x USB 3.0 + 6x USB 3.1 + 2x Thunderbolt 4 (USB4 Type-C)
Gniazda USB na płycie głównej: 2x USB 2.0 (4 porty) + 2x USB 3.0 (4 porty) + 1x USB 3.2 Type-C (1 port)
Port Wi-Fi: IEEE 802.11a/b/g/n/ac/ax/be
Port Bluetooth: Bluetooth V5.4
Uwagi do WiFi / BT: Intel Wi-Fi 7 BE200NGW, - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency b, - BLUETOOTH 5.4, - Support for 11be 320MHz wireless standard, - Actual data rate may vary depending on environment and equipment, - Wi-Fi 7 features require Windows 11 SV3 to function properly, - Wi-Fi 7 channels on 6 GHz band availability depends on country's regulati
Port PS/2: Brak
Port szeregowy (COM): Brak
Port równoległy (LPT): Brak
Inne porty i gniazda: 2x SMA antenna connectors (2T2R), Q-Flash Plus button, Clear CMOS button(s), CPU fan/water cooling pump header, 4x system fan headers, 4x system fan/water cooling pump headers, 4x addressable RGB Gen2 LED strip headers, RGB LED strip header, Gniazdo modułu TPM, Noise detection header, Reset jumper, Clear CMOS jumper, 2x temperature sensor headers
Gniazdo zasilania: ATX (24-pin) + 2x ATX12V (8-pin)
Wymiary [S x W] (mm): 305 x 244
Opakowanie: BOX
Zawiera baterię / akumulator: Tak
Informacje dodatkowe: Support for Windows 11 64-bit, BIOS: PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
BIOS:
256 Mbit flash
Chipset płyty głównej:
Intel® Z890
Format płyty:
ATX
Gniazda karty dźwiękowej:
2x Audio Jack, Wewnętrzne gniazdo audio przedniego panelu, Wyjście optyczne S/PDIF
Gniazda karty graficznej:
2x Thunderbolt™ 4 (USB Type-C®), HDMI
Gniazda USB na płycie głównej:
2x USB 2.0 (4 porty) + 2x USB 3.0 (4 porty) + 1x USB 3.2 Type-C (1 port)
Gniazdo procesora:
Socket 1851
Gniazdo zasilania:
ATX (24-pin) + 2x ATX12V (8-pin)
Ilość złącz pamięci DDR5:
4
Inne porty i gniazda:
2x SMA antenna connectors (2T2R), 2x temperature sensor headers, 4x addressable RGB Gen2 LED strip headers, 4x system fan headers, 4x system fan/water cooling pump headers, Clear CMOS button(s), Clear CMOS jumper, CPU fan/water cooling pump header, Gniazdo modułu TPM, Noise detection header, Q-Flash Plus button, Reset jumper, RGB LED strip header
Maksymalna ilość portów USB 2.0:
6
Maksymalna ilość portów USB 3.x:
15
Maksymalna ilość portów USB 4.0:
2
Maksymalna wielkość pamięci:
256 GB
Obsługiwane typy procesorów:
Intel Core Ultra Processors (series 2)
Opakowanie:
BOX
Port Bluetooth:
Bluetooth V5.4
Port LAN:
1x 10 Gigabit LAN Marvell® AQtion AQC113C
Port PS/2:
Brak
Port równoległy (LPT):
Brak
Port szeregowy (COM):
Brak
Port Wi-Fi:
IEEE 802.11a/b/g/n/ac/ax/be
Porty USB na panelu tylnym:
2x USB 2.0 + 4x USB 3.0 + 6x USB 3.1 + 2x Thunderbolt 4 (USB4 Type-C)
Standard pamięci:
DDR5-5600, DDR5-5800, DDR5-6600 (OC), DDR5-6800 (OC), DDR5-7000 (OC), DDR5-7200 (OC), DDR5-7400 (OC), DDR5-7600 (OC), DDR5-7800 (OC), DDR5-7900 (OC), DDR5-7950 (OC), DDR5-8000 (OC), DDR5-8200 (OC), DDR5-8266 (OC), DDR5-8400 (OC), DDR5-8600 (OC), DDR5-8800 (OC), DDR5-8933 (OC), DDR5-9066 (OC), DDR5-9200 (OC), DDR5-9333 (OC), DDR5-9466 (OC), DDR5-9500 (OC)
Tryb pracy pamięci RAM:
Dual Channel
Uwagi do karty dźwiękowej:
2/4/5.1-channel, ESS ES9118 DAC chip, High Definition Audio, Support for DTS:X® Ultra
Uwagi do karty graficznej:
- HDMI 1.4 supporting a maximum resolution of 1920x1080@30 Hz, - Support for HDMI 1.4 version, - When a Thunderbolt monitor is installed, the maximum resolution, - When a USB4 USB Type-C monitor is installed, the maximum resolution, supported is 3840x2160@240 Hz (single display output), supported is 5120x2880@60 Hz with 24 bpp (single display output)
Uwagi do kontrolera SATA:
- 1 x M.2 connector (Socket 3, M key, type 22110/2280, - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support), - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280, - 1x M.2 connector (Socket 3, M key, type 2280 SATA and, - 4 x SATA 6Gb/s connectors, Chipset:, CPU:, PCIe 4.0 x4/x2 SSD support) (M2B_CPU), PCIe 4.0 x4/x2 SSD support) (M2M_SB), PCIe 4.0 x4/x2 SSD support) (M2P_SB), PCIe 5.0 x4/x2 SSD support) (M2D_CPU), PCIe 5.0x4/x2 SSD support) (M2A_CPU)
Uwagi do pamięci RAM:
(operate in non-ECC mode), Support CUDIMM memory module, Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules, Support for Extreme Memory Profile (XMP) memory modules, Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Uwagi do procesora:
L3 cache varies with CPU
Uwagi do WiFi / BT:
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency b, - Actual data rate may vary depending on environment and equipment, - BLUETOOTH 5.4, - Support for 11be 320MHz wireless standard, - Wi-Fi 7 channels on 6 GHz band availability depends on country's regulati, - Wi-Fi 7 features require Windows 11 SV3 to function properly, Intel Wi-Fi 7 BE200NGW
Uwagi do złącz PCI:
- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1), - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4), - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 PCIEX1, - If only one graphics card is to be installed, be sure to install it in, - The PCIEX16 slot can only support a graphics card or an NVMe SSD, - The PCIEX16 slot operates at up to x8 mode when a device is installed in, - The PCIEX16 slot shares bandwidth with the M2D_CPU connector, Chipset:, CPU:, the M2D_CPU connector, the PCIEX16 slot
Wymiary [S x W] (mm):
305 x 244
Zawiera baterię / akumulator:
Tak
Zintegrowana karta dźwiękowa:
Realtek® ALC1220 CODEC
Zintegrowany kontroler SATA:
Chipset+CPU: 6x SATA III 6Gb/s - RAID 0,1,10,5 + 5x M.2 - RAID 0,1,10,5
Złącza PCI Express x16:
3
